NAS Build 2019 Step 9 - OS Install & Initial Testing

If this is your first time seeing this series, I recommend starting at the beginning.

Building A New Nas
You can find all the other posts below, this is the 10th post in the series.

Install the Operating System

I am going to be using Ubuntu 18.04 Server. The operating system will be installed on a pair of 256GB SSD drives using Raid 1. I will be using ZFS on Linux for the 15 data drives.

Installation was easy except for the initial problem I mentioned in the last post about the switch firmware. I did not expect that to happen, but neither of my network cards would pick up a link light.

I thought it might be something to do with the fact they were 10Gbit network cards but out of curiosity, I checked my 1GBit switch to see how old the firmware was. A lot of SOHO (small office / home office) network equipment is very poorly maintained and many times resolving many issues in future firmware.

Source

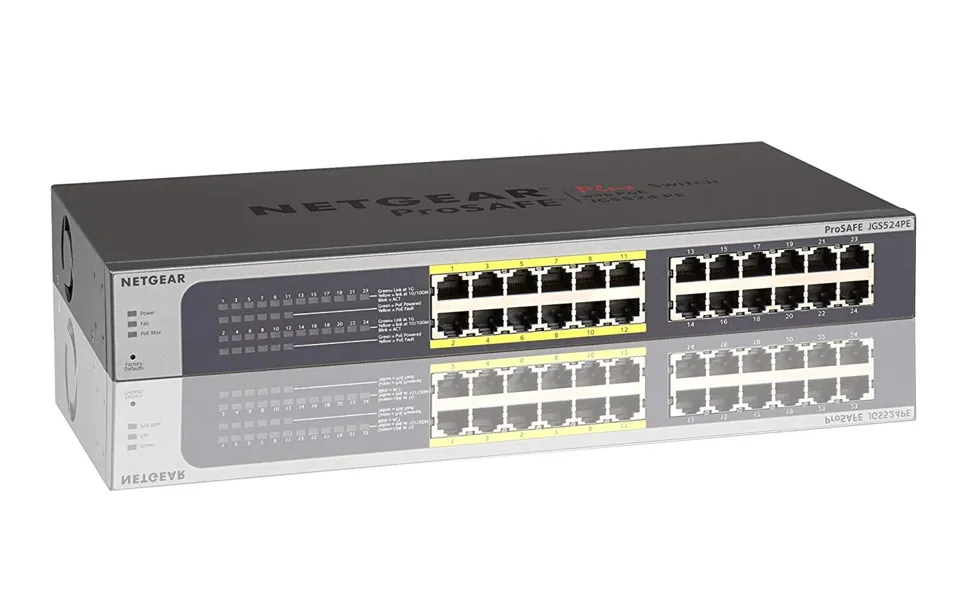

I use a 1Gbit 24 port switch with 12 PoE ports (Power over Ethernet). I use the PoE ports for Wifi endpoints and cameras. I will switch to a full 10Gbit network when prices are reasonable to get a 24 port 10Gbit switch, for now, I will only be using 10Gbit between my main workstation and my NAS.

Outside of the switch firmware issue, installation was really easy.

SAS Expander

Using the SAS expander was plug and play. I just installed the card, used the male to male 8087 SAS cables to connect the motherboard ports to the SAS expander and plugged all the drives into the SAS expander board. This allows me to use up to 24 drives instead of the 8 supported by the motherboard.

Testing

Connecting and wiring the 15 SAS drives was a big pain in the butt. Once done though, everything worked immediately. No hardware failures anywhere, and all 15 drives spun up immediately.

I initially tested Raid 0 with all 15 drives striping data. This is the absolute best performance you are going to get with zero data protection. If a single drive fails, you lose all data across all 15 drives. My final configuration will either be mirrored (3) Raidz Striped (Raid 5 x 3 Striped) or Raidz2 (Raid 6),

I haven't decided but am leaning towards (3) Raidz Striped. This will give me three smaller (5 drive) Raid 5 arrays with Raid zero between the three arrays. In this configuration, I can lose up to three drives and still have a working array, but if two drives from any of the 5 drive arrays fail, I will lose data on all 15 drives. Raidz2 would allow me to lose any two drives and remain running. (3) Raidz will be faster, but potentially riskier.

Striped Performance (aka Raid 0)

        NAME        STATE     READ WRITE CKSUM
        tank        ONLINE       0     0     0
          sda       ONLINE       0     0     0
          sdc       ONLINE       0     0     0
          sdd       ONLINE       0     0     0
          sde       ONLINE       0     0     0
          sdf       ONLINE       0     0     0
          sdg       ONLINE       0     0     0
          sdh       ONLINE       0     0     0
          sdi       ONLINE       0     0     0
          sdj       ONLINE       0     0     0
          sdk       ONLINE       0     0     0
          sdl       ONLINE       0     0     0
          sdm       ONLINE       0     0     0
          sdn       ONLINE       0     0     0
          sdo       ONLINE       0     0     0
          sdp       ONLINE       0     0     0

WRITE: bw=1418MiB/s (1487MB/s)
READ: bw=2248MiB/s (2358MB/s)

Striped Raidz Performance (aka Raid 50)

        NAME                        STATE     READ WRITE CKSUM
        tank                        ONLINE       0     0     0
          raidz1-0                  ONLINE       0     0     0
            wwn-0x5000c500  ONLINE       0     0     0
            wwn-0x5000c500  ONLINE       0     0     0
            wwn-0x5000c500  ONLINE       0     0     0
            wwn-0x5000c500  ONLINE       0     0     0
            wwn-0x5000c500  ONLINE       0     0     0
          raidz1-1                  ONLINE       0     0     0
            wwn-0x5000c500  ONLINE       0     0     0
            wwn-0x5000c500  ONLINE       0     0     0
            wwn-0x5000c500  ONLINE       0     0     0
            wwn-0x5000c500  ONLINE       0     0     0
            wwn-0x5000c500  ONLINE       0     0     0
          raidz1-2                  ONLINE       0     0     0
            wwn-0x5000c500  ONLINE       0     0     0
            wwn-0x5000c500  ONLINE       0     0     0
            wwn-0x5000c500  ONLINE       0     0     0
            wwn-0x5000c500  ONLINE       0     0     0
            wwn-0x5000c500  ONLINE       0     0     0

WRITE: bw=805MiB/s (844MB/s)
READ: bw=2122MiB/s (2225MB/s)

Raidz2 (aka Raid 6)

        NAME        STATE     READ WRITE CKSUM
        tank        ONLINE       0     0     0
          raidz2-0  ONLINE       0     0     0
            sda     ONLINE       0     0     0
            sdc     ONLINE       0     0     0
            sdd     ONLINE       0     0     0
            sde     ONLINE       0     0     0
            sdf     ONLINE       0     0     0
            sdg     ONLINE       0     0     0
            sdh     ONLINE       0     0     0
            sdi     ONLINE       0     0     0
            sdj     ONLINE       0     0     0
            sdk     ONLINE       0     0     0
            sdl     ONLINE       0     0     0
            sdm     ONLINE       0     0     0
            sdn     ONLINE       0     0     0
            sdo     ONLINE       0     0     0
            sdp     ONLINE       0     0     0

WRITE: bw=315MiB/s (330MB/s)
READ: bw=2205MiB/s (2312MB/s)

Temperatures

/dev/sda: SPCC Solid State Disk: 33°C
/dev/sdb: SPCC Solid State Disk: 33°C
/dev/sdc: SEAGATE ST4000NM0023: 49°C
/dev/sdd: SEAGATE ST4000NM0023: 60°C
/dev/sde: SEAGATE ST4000NM0023: 58°C
/dev/sdf: SEAGATE ST4000NM0023: 60°C
/dev/sdg: SEAGATE ST4000NM0023: 56°C
/dev/sdh: SEAGATE ST4000NM0023: 55°C
/dev/sdi: SEAGATE ST4000NM0023: 55°C
/dev/sdj: SEAGATE ST4000NM0023: 51°C
/dev/sdk: SEAGATE ST4000NM0023: 56°C
/dev/sdl: SEAGATE ST4000NM0023: 55°C
/dev/sdm: SEAGATE ST4000NM0023: 55°C
/dev/sdn: SEAGATE ST4000NM0023: 48°C
/dev/sdo: SEAGATE ST4000NM0023: 53°C
/dev/sdp: SEAGATE ST4000NM0023: 51°C

Another thing I was concerned with is cooling. I want to make sure the drives are not overheating under use. When I was testing with the case opened I was seeing some raised temperatures. After closing up the case and installing the fan wall I am seeing workable temperatures.

Compression

ZFS has fantastic compression support. Traditionally I would recommend not using compression on a file system, but the way ZFS does it will actually improve performance. By compressing data you trade some CPU time for reducing the amount of data written to disk. Seeing as CPU performance is exponentially faster than spinning disks, this tradeoff works in our favor. ZFS takes this one step further and will stop compression if it isn't getting a good ratio. This typically happens when trying to compress data that has already been compressed or cannot optimally be compressed. This prevents wasting CPU cycles trying to compress it.

Conclusion

Performance on Raid 0 is pretty impressive 1.4GB/s writes and 2.2GB/s reads on mechanical disks. I would never trust my data on this and I was merely testing what I can get out of the hardware.

The striped raidz performance was still very good and was around what I expected out of the hardware.

Raidz2 has fantastic read performance but the write performance is severely reduced due to the double parity.

These tests were done using sequential IO using 128K block size and represent ideal conditions and not typical usage. I am mostly looking to see if everything is working well together and identify any bottlenecks.

I am going to do some more testing, and then do the final OS install on Raid 1. I am currently using a single SSD disk for testing. I will also need to install Samba to allow me to use Windows File Sharing. I then want to test performance using local Virtual Machines.
